Other Hydraulic Attachments

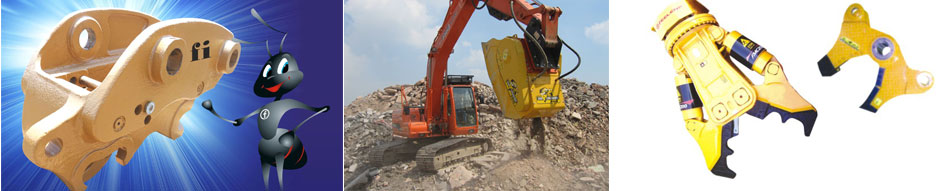

Excavator Attachment- crusher
Fine Crushers are specially designed and is an international necessity for many demolition jobs. Weoffer you different range of crushers suitable for various base machines.

Applications Advantages
In- site demolition. Low noise.
Demolition in critical surrounding. No fly rock.
Fast demolition needs. Low dust / pollution.

Availability
  • Different models to fit 6 ton excavators & backhoe loaders through 60 ton demolition excavators.
  • Crushing arms can be interchanged with shearing cutter.
  • Secondary crushing (Pulverizing) models available.
  • 360 º rotation.

Specification Fine FMC 60 Fine FMC 200 Fine FMC 300
Operating Weight (kg) 580 1870 2930
Overall Height (mm) 1505 2180 2455
Operating Pressure (bar) 200 - 130 320 320
Crushing Force (ton) 2 X 45 2 X 105 2 X 176
Max. Operating Width (bpm) 680 800 1000
Cutter Length (mm) 140 200 200
Overall Width (mm) 1003 1255 1559
Suitable Base Machine (ton) 7 - 12 18 - 26 28 - 36

Excavator attachment - Grapple series
Product Features
  • Unlimited dockwise and anti-dockwise 360° rotatable
  • Operator can control the rotating speed
  • Oil flow control valve and motor protection mechanism applied
  • Enclosed check valve for safety operation
  • Specially designed big cylinder for more power
  • Specially designed swing bearing for durability
  • Wear resistant special solid steel (PT 60 from POSCO) is used and no extra reinforcement is required
  • For loading scrap, garbage, demolition debt?s and waste paper
  • Contractors in forestry, recycling, landscaping and General Contracting all appreciate the versatility of DAEHAN?s power rotating grapples for their various configurating options
Specification
Model Unit DHRS 03 DHRS 04 DHRS 06 DHRS 08 DHRS 10 DHRS 14 DHRS 20
Weight Kg 320 390 740 1380 1700 1900 2100
Jaw Opening m/m 1300 1400 1800 2300 2500 2500 2700
Oil Pressure Kg/Cm2 110~140 120~160 150~170 160~180 160~180 180~200 180~200
Set Oil Pressure Kg/Cm2 170 180 190 200 210 250 250
Operating Flux lpm 30~55 50~100 90~110 100~140 130~170 200~250 200~320
Cylinder ton 4.0x2 4.0x2 8.0x2 9.7x2 12x2 12x2 14x2
Carrier ton 4~6 7~11 12~16 17~23 24~30 31~40 41~50
FINE Grapple is the standard! Strong power for Forestry, Recycling, Landscaping, eneral Contracting etc. Never Comparing any graphics.

Product Features
  • Enclosed cylinder check valve installed to prevent the drop of holding material
  • Lever controlled operation facilitates loading and unloading of jobs
  • Minimized hydraulic trouble which may occur during rotating works.
  • Flexible choices dependent on job requirement.
  • Operator can control the rotating speed.
  • Oil flow control valve and motor protection mechanism applied
  • Unlimited dockwise and anti-dockwise 3600 rotatable
  • Specially designed swing bearing for durability & big cylinder for more power.
  • Wear resistant special solid steel (PT 60 from POSCO) is used and no extra reinforcement is required
  • Flexible choices dependent on job requirement.

Specification
Model Unit DHRW 03 DHRW 04 DHRW 06 DHRW 08 DHRW 10 DHRW 14 DHRW 20
Weight Kg 240 390 740 1380 1700 1900 2100
Jaw Opening m/m 1300 1400 1800 2300 2500 2500 2700
Oil Pressure Kg/Cm2 110~140 120~160 150~170 160~180 160~180 180~200 180~200
Set Oil Pressure Kg/Cm2 170 180 190 200 210 250 250
Operating Flux lpm 30~55 50~100 90~110 100~140 130~170 200~250 250~320
Cylinder ton 4.5x2 4.5x2 8.0x2 9.7x2 12x2 12x2 14x2
Carrier ton 4~6 7~11 12~16 17~23 24~30 31~40 41~50
Perfect partner FINE Rotating wood Grapple! Specially designed swing bearing for durability and big cylinder for more power, so many users in the world love that.

Product Features
  • Specially designed big cylinder for more power.
  • Wear resistant special solid steel (PT 60 from POSCO) is used and no extra reinforcement is required.
  • Flexible choices dependent on job requirement.
  • Enclosed cylinder check valve installed to prevent the drop of holding material.
  • Lever controlled operation facilitates loading and unloading of many jobs.
  • For loading scrap, garbage, demolition debt?s and waste paper.
  • Contractors in forestry, recycling, landscaping and General Contracting all appreciate the of DAEHAN?s grapples for various configurating options.

Specification
Model Unit DHFS 03 DHFS 04 DHFS 06 DHFS 08 DHFS 10 DHFS 20
Weight Kg 250 310 600 1200 1450 1700
Jaw Opening m/m 1300 1400 1800 2300 2500 2700
Oil Pressure Kg/Cm2 110~140 120~160 150~170 160~180 160~180 180~200
Set oil Pressure Kg/Cm2 170 180 190 200 210 250
Operating Flux lpm 30~55 50~100 90~110 100~140 130~170 200~320
Cylinder ton 4.0x2 4.5x2 8.0x2 9.7x2 12x2 14x2
Carrier ton 4~6 7~11 12~16 17~23 24~30 30~40

Product Features
  • Enclosed cylinder check valve installed to prevent the drop of holding material.
  • Lever controlled operation facilitates loading and unloading of many jobs.
  • Enclosed cylinder check valve installed to prevent the drop of holding material.
  • Flexible choices dependent on job requirement.
  • Specially designed big cylinder for more power.
  • Wear resistant special solid steel (PT 60 from POSCO) is used and no extra reinforcement is required.
Specification
Model Unit DHFW 03 DHFW 04 DHFW 06 DHFW 08 DHFW 10 DHFW 20
Weight Kg 250 340 580 1170 1420 1650
Jaw Opening m/m 1300 1400 1800 2300 2500 2700
Oil Pressure Kg/Cm2 110~140 120~160 150~170 160~180 160~180 180~200
Set Oil Pressure Kg/Cm2 170 180 190 200 210 250
Operating Flux lpm 30~55 55~100 90~110 100~140 130~170 200~320
Cylinder ton 4.0x2 4.5x2 8.0x2 9.7x2 12x2 14x2
Carrier ton 4~6 7~11 12~16 17~23 24~30 30~40
Power rotation and full safety system.

PRODUCTS
» Rock Breakers
» Pick & Carry Cranes
» Other Hydraulic Attachments
» Light Construction Equipment

PRODUCTS PHOTOS

























 Clam Shell Buckets
Specification Fine FCB 700 Fine FCB 800 Fine FCB 900 Fine FCB 1500 Fine FCB 2000
Capacity(m²) 0.5 0.7 0.95 1.5 2
Weight(Kg) 720 980 1.15 1.45 2.05
Weight(Kg) 720 980 1.15 1.45 2.05
A 1.583 1.875 2.006 2.006 2.41
B 1.583 1.875 2.006 2.006 2.41
C 800 800 900 1.5 1.546
H 1.292 1.605 1.55 1.55 1.546
H1 1.852 2.094 2.14 2.14 2.395
Excavator(ton) 12-18 18-25 25-32 29-40 40 onwards

Hydraulic Quick Couplers

The fine quick Coupler can save you time, money and increase your profit. This unique and innovative coupler allows machine operates to change from bucket to bucket in less than 10 seconds and from hammer to bucket in less than 1 minute. The cost effective and universal FINE coupler picks up a large and varied range of bucket and attachments compatible with the world's major machine manufacturers. This quick coupler is ideal for all customer working on a variety of different task in diverse range of applications.
